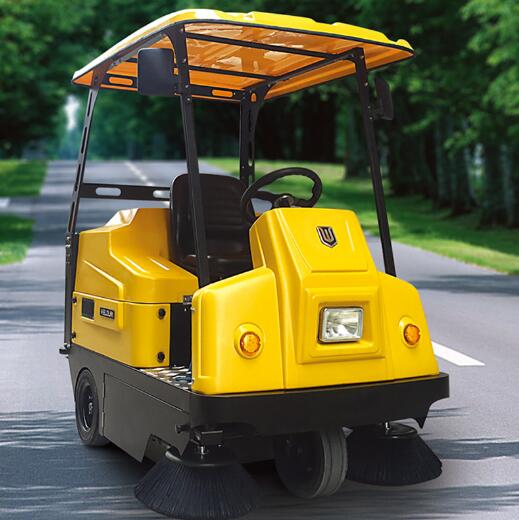

偉頓吸塵掃地機W1400 |
|
產品型號：W1400 |
|
產品材料： |
|
產品簡介： |
|
偉頓駕駛式吸塵掃地機W1400這是一款市面上性價比高以吸塵功能為主的小型駕駛式掃地機，清掃寬度為1380mm,轉彎靈活，工作效率高，能在短時間內完成一個十人清潔部門的工作量。適用于工廠，車間，物流，小區，學校園區，景區，街道等區域清掃。 |
|
|
| |
|
詳細參數： |
|
|
偉頓掃地車W1400技術參數 TECHNICAL PARAMETERS:
1.清掃寬度 Working Width:1350-1400mm
2.清掃效率 Productivity:≥9500㎡/h
3.續航時間 Continuous Work Time:6-9h
4.垃圾箱容量 Waste Hopper Capacity:150L
5.過濾器面積（濾芯）Filter Surface:7㎡
6.主刷尺寸 Length of Main Brush:700mm
7.邊刷尺寸 Diameter of Side Brush:500mm
8.行駛速度 Max Driving Speed:9km/h
9.清掃速度 Max Working speed:5-9km/h
10.爬坡能力 Gradeability:25度
11.電壓 Voltage：36V
12.整機重量 Net weight ：655Kg
13.作業功率 Working Power：(風機Vacuuming750+主刷Main Brush700+邊刷Side Brush80*2+振塵Vibration90) =1700W
14.驅動功率 Driving Power(Motor)：1500W
15.總功率 Total Power:3200
16.霧式噴水水箱 Water Tank Capacity:選配Optional30L
17.遮陽頂棚 Sunshade：選配
18.擋風玻璃 Windscreen：選配
19.尺寸（長*寬*高）Dimension(L/W/H)：1750*1350*1860
20.包裝尺寸（長*寬*高）Packaging Size(L/W/H)：2180*1300*1500
11個產品特點：
1.專利減震系統：減少機器因震動造成的機器故障率，提升操控舒適性。
2.續航能力：采用膠體免維護動力電池，動力持久，每天可持續工作6-8小時。
3.吸塵系統：700W風機功率，7平方米過濾面積，配合強負壓離心式鋁合金風葉，比同類型掃地機高雙倍的吸塵效率，專業解決惡劣粉塵環境的揚塵問題。
4.驅動橋：無級變速后橋，鋁合金箱體，修形研磨齒輪設計，無噪音，重量輕，不漏油，更耐久更可靠。
5.控制器：采用美國KELLY控制器，確保動力輸出平穩，性能卓越。
6.濾芯清理便捷：外置吹塵導管，日常濾芯清理，無需拆下濾芯，簡單快捷。
7.效率高：每小時工作效率可達9500平方米每小時，一部機器可以代替10-14個勞動力。
8.維護方便：后掀式設計，所有內部件一目了然，清潔工也能進行簡易故障排除。
9.性能穩定：工業級設計制造標準，性能穩定，維修成本低。
10.安全性可靠：剎車性能，全速狀態下2米內剎停，配備緊急斷電開關和腳踏式駐車手剎。
PRODUCT CHARACTERISTICS
1.Patented Body Damping:Reduce the machine failure rate caused by vibration and improve the comfort.
2.Ultra-long Continuous:Using world leading technology gel maintenance-free power batteries.Its power durability can ensure 6-9hours of continuous working.
3.Super Vacuum System:700W vacuum motor,10sq.m large filtering area,with strong negative pressure centrifugal aluminum blades,higher than the same type sweeping machine with double dust collection efficiency,specialized to solve the problem of the dusty environment.
4.Drive Axle:Ultra-quiet CVT(Continuously Variable Transmission)rear driving axle,with aluminum alloy enclosure and good-look grinding gear design,no noise,light weight,no leaking ,more durable and reliable.
5.Controller:Use thd U.S. "Kelly" brand controller,and ensure the smooth power output.The performance is remakable.
6.Easy Cleaning for Filter Roller:W/external dust-removal pipe for daily filter roller cleaning,no need to remove the fitler roller,simple and quickly.
7.High Efficiency:Maximum woking efficiency per hour is up to 13000/h,and a machine can replace 12-16labor force.
8.Convenient Maintenance:With rear-lift type design,all internal parts are clear at a glance ,and cleaner can also perform simple troubleshooting.
9.Stable Performance:W/industrial-level design and manufacturing standard,stable performance,low maintenance cost.
10.Safety:Ultra-strong braking performance,it can be stopped within 2m at full-speed,equipped with emergency power off switch and treadle type parking brake.
|
|
| |
